The Octane is M-Audio's eight-channel mic preamp and A/D converter, built around the same preamp circuit found in their well-regarded DMP3. The concept is straightforward and useful: eight channels of clean, low-noise preamp gain feeding both individual analog outputs and an ADAT Lightpipe output, which means you can drop this into any recording rig with a spare optical input and immediately add eight more analog channels at 24-bit resolution. All eight channels have rear-panel XLR mic inputs, balanced 1/4" line inputs and preamp outputs, front-panel gain knobs, 20dB pads, and three-segment LED meters. Channels 1 and 2 add front-panel hi-Z instrument inputs with independent gain. Channels 7 and 8 include M-S matrix decoding with width control for mid-side stereo recording. Phantom power is switchable in two groups of four, phase reverse is available on all even channels, and a low-cut filter sits on channel 1. Word clock I/O via BNC lets you sync multiple units or lock to an external clock. A practical, honest workhorse for anyone who needs more inputs.

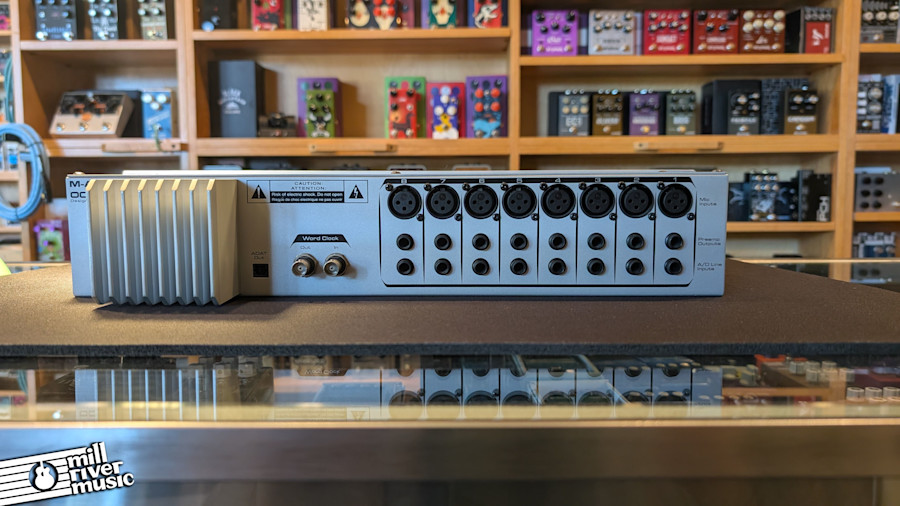

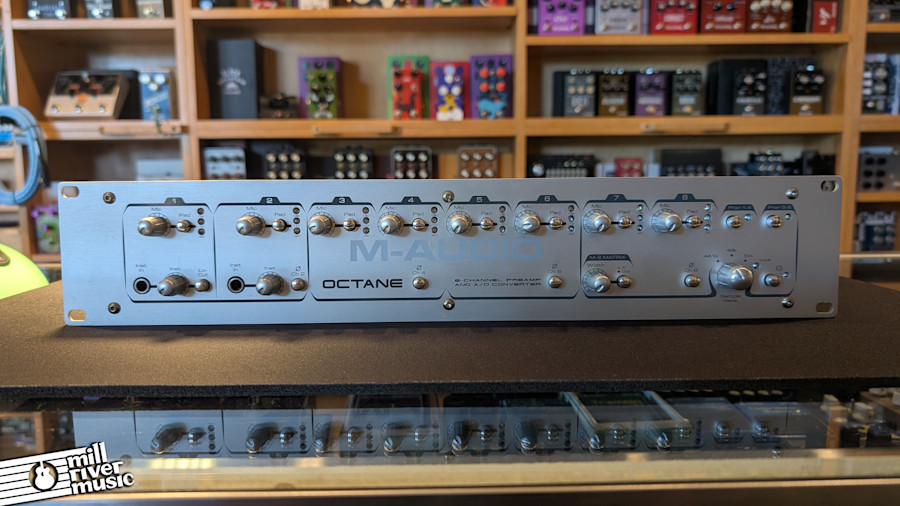

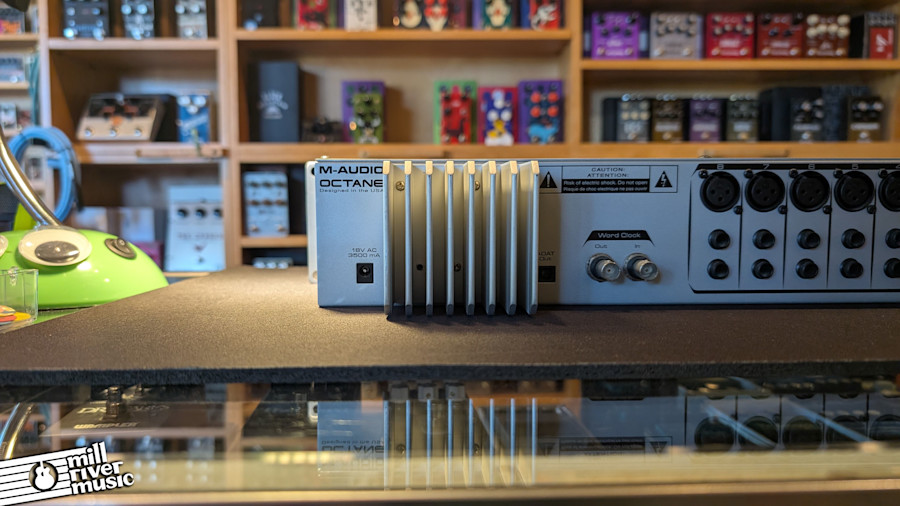

This unit is in excellent condition and fully functional. Minor cosmetic scratches on the chassis — photos show the condition accurately.
- Make: M-Audio
- Model: Octane
- Type: 8-channel microphone preamp and A/D converter, 2U rackmount
- Channels: 8
- Gain: 50dB variable per channel
- Mic inputs: 8 x balanced XLR (rear panel)
- Line inputs: 8 x balanced 1/4" TRS (rear panel, half-normalled as insert ins or standalone A/D)
- Preamp outputs: 8 x balanced 1/4" TRS (rear panel)
- Instrument inputs: channels 1 and 2, front-panel 1/4" TS, independent gain
- Digital output: ADAT Lightpipe (TOSlink), 24-bit
- Sample rate: selectable 44.1kHz or 48kHz, external sync 33-59kHz
- Word clock: I/O via 75-ohm BNC
- Phantom power: +48V, switchable in groups (ch. 1-4, ch. 5-8)
- Phase reverse: even channels
- Low-cut filter: channel 1 only, -12dB/oct at 80Hz
- M-S matrix: channels 7 and 8, with width control
- Frequency response: 20Hz-20kHz, +/- 0.11dB
- Signal-to-noise ratio: 120dB A-weighted
- Dynamic range: 120dB A-weighted
- THD+N: 0.00041%
- Modifications: none
- Includes: none
Ships carefully packed and insured for full value.
International buyers are welcome — please contact us for a shipping quote before purchasing.
